MADEIRO 7‘5’‘ / 7’7‘’ / 7’11‘’ / 8’3‘’ / 8’5‘’ / 8’8’’

7‘7’’

Lighting fast accelerations, maximum carving, tight turns, roller off the lip and re-entry… The MADEIRO are the boards of our pro-team and are developped by our best riders.

Fast and easy to get moving when paddling, the take-off is super fast with instant acceleration down to the bottom turn with a very intuitive carving. These boards offer a perfect longitudinal balance so that you can really focus on the wave instead of worrying with the board.

No need to force or move your feet around to turn the board: everything is natural.

It becomes easier to follow the progression of the wave and carve your lines.

Since 2015, the range includes two larger sizes designed to broaden the accessibility of these boards: 8’5’’ x 31.5” and 8’8’’ x 33” are available with a bamboo deck construction. Being more accessible thanks to their width and volume, a lot of work went into these boards to keep the speed and acceleration that makes them ultra responsive and just as impressive as their smaller siblings.

Size 7’7’’ x 28”
Dimensions 229 X 71 CM
Volume 90 L
Weight 7 KG*
Fin boxes layout Quattro + central FUTURES© box
Quattro set V2JC1 + QD2 400

*indicative value, subject to small variations due to the custom manufacturing process.

7‘’11’

Lighting fast accelerations, maximum carving, tight turns, roller off the lip and re-entry… The MADEIRO are the boards of our pro-team and are developped by our best riders.

Fast and easy to get moving when paddling, the take-off is super fast with instant acceleration down to the bottom turn with a very intuitive carving. These boards offer a perfect longitudinal balance so that you can really focus on the wave instead of worrying with the board.

No need to force or move your feet around to turn the board: everything is natural.

It becomes easier to follow the progression of the wave and carve your lines.

Since 2015, the range includes two larger sizes designed to broaden the accessibility of these boards: 8’5’’ x 31.5” and 8’8’’ x 33” are available with a bamboo deck construction. Being more accessible thanks to their width and volume, a lot of work went into these boards to keep the speed and acceleration that makes them ultra-responsive and just as impressive as their smaller siblings.

Size 7’11’’ x 29”
Dimensions 239 X 74 CM
Volume 99 L
Weight 7.4 KG*
Fin boxes layout Quattro + central FUTURES© box
Quattro set V2JC1 + QD2 400

*indicative value, subject to small variations due to the custom manufacturing process.

8"3’

Lighting fast accelerations, maximum carving, tight turns, roller off the lip and re-entry… The MADEIRO are the boards of our pro-team and are developped by our best riders.

Fast and easy to get moving when paddling, the take-off is super fast with instant acceleration down to the bottom turn with a very intuitive carving. These boards offer a perfect longitudinal balance so that you can really focus on the wave instead of worrying with the board.

No need to force or move your feet around to turn the board: everything is natural.

It becomes easier to follow the progression of the wave and carve your lines.

Since 2015, the range includes two larger sizes designed to broaden the accessibility of these boards: 8’5’’ x 31.5” and 8’8’’ x 33” are available with a bamboo deck construction. Being more accessible thanks to their width and volume, a lot of work went into these boards to keep the speed and acceleration that makes them ultra-responsive and just as impressive as their smaller siblings.

Size 8’3’’ x 30”
Dimensions 250 X 76 CM
Volume 110 L
Weight 7.8 KG*
Fin boxes layout Quattro + central FUTURES© box
Thruster set CENTRO 5’0” + Side fins FUTURES© F3 425

*indicative value, subject to small variations due to the custom manufacturing process.

8’5"

Lighting fast accelerations, maximum carving, tight turns, roller off the lip and re-entry… The MADEIRO are the boards of our pro-team and are developped by our best riders.

Fast and easy to get moving when paddling, the take-off is super fast with instant acceleration down to the bottom turn with a very intuitive carving. These boards offer a perfect longitudinal balance so that you can really focus on the wave instead of worrying with the board.

No need to force or move your feet around to turn the board: everything is natural.

It becomes easier to follow the progression of the wave and carve your lines.

Since 2015, the range includes two larger sizes designed to broaden the accessibility of these boards: 8’5’’ x 31.5” and 8’8’’ x 33” are available with a bamboo deck construction. Being more accessible thanks to their width and volume, a lot of work went into these boards to keep the speed and acceleration that makes them ultra-responsive and just as impressive as their smaller siblings.

Size 8’5’’ x 31.5”
Dimensions 258 X 80 CM
Volume 125 L
Weight 8.5 KG*
Fin boxes layout Quattro + central FUTURES© box
Thruster set CENTRO 5’5” + Side fins FUTURES© F3 425

*indicative value, subject to small variations due to the custom manufacturing process.

8’8"

Lighting fast accelerations, maximum carving, tight turns, roller off the lip and re-entry… The MADEIRO are the boards of our pro-team and are developped by our best riders.

Fast and easy to get moving when paddling, the take-off is super fast with instant acceleration down to the bottom turn with a very intuitive carving. These boards offer a perfect longitudinal balance so that you can really focus on the wave instead of worrying with the board.

No need to force or move your feet around to turn the board: everything is natural.

It becomes easier to follow the progression of the wave and carve your lines.

Since 2015, the range includes two larger sizes designed to broaden the accessibility of these boards: 8’5’’ x 31.5” and 8’8’’ x 33” are available with a bamboo deck construction. Being more accessible thanks to their width and volume, a lot of work went into these boards to keep the speed and acceleration that makes them ultra-responsive and just as impressive as their smaller siblings.

Size 8’8’’ x 33”
Dimensions 266 X 84 CM
Volume 140 L
Weight 9.1 KG*
Fin boxes layout Quattro + central FUTURES© box
Thruster set CENTRO 6’0” + Side fins FUTURES© F3 425

*indicative value, subject to small variations due to the custom manufacturing process.

6

Smart handle


Featured on all the 2016 SUP range:
the innovative and multifunction handle developed by F-ONE.

The SMART HANDLE includes the following features :

1  – Decompression valve
2  – Multifunction tool compartment
3  – Recessed volume
4  – Screwdriver head
5  – Allen key

F_ONE_SUP_construction_smart_handle2_585_0

More comfortable with advanced ergonomics, it is completely recessed and makes it easier to carry the SUP. The new handle helps a lot to grab the boards easily when lying flat on the ground or on the water.

F_ONE_SUP_construction_smart_handle_profil_585_0

The handle already includes the screw for the decompression valve (1).
A specific multifunction tool has been created and fits neatly into the handle (2).

F_ONE_SUP_construction_screw_585_0

The tool can be opened in two parts to reveal an Allen key which can be used to easily fit all your F-ONE SUP fins (US or FUTURES® Box) without looking everywhere to find a tool.

multifunction_tool_closed_EN__0

The top part of the tool was designed to serve as a screwdriver to open or close the decompression valve.

multifunction_tool_open_EN__0

To prevent from oversight and to make sure the decompression valve is always closed when the SUP is in the water, a reminder has been included: you cannot fit the tool back into its place nor can you carry the board if you haven’t closed the decompression valve.
Furthermore, the tool finds itself clipped on in this position. This was made to ensure the board can be transported without losing the tool. You therefore don’t have to look for the last place where you left the tool and can be sure that anyone grabbing your board will notice that the valve is not shut.

multifunction_tool_insert_1 multifunction_tool_use_1

Bamboo boost

All of our SUP benefit from our Bamboo Sandwich Technology construction. Every layer of bamboo is reinforced with two layers of fiberglass. This allows the sandwich technology to emphasize the characteristics of the bamboo.

The final result is a light structure that is super strong and extremely reliable.

HD Foam Carbon Composite

This sandwich construction (high density foam + fiberglass + carbon) provides the MADEIRO PRO with a strong resistance and lighter weight compared to the FULL BAMBOO versions.

This new construction improves the weight/resistance ratio of the MADEIRO PRO range which remain among the lightest and best performing boards of the market.

Bamboo and Carbon deck

On the deck, the board is built using a full layer of carbon fiber over which is laid the bamboo sheet.
Then a final layer of fiberglass is laminated on top, which ensures extreme durability and an amazing light weight.

Beveled rail

beveled_rail_2For all surfers one of the inconveniences of a SUP is the large size of the rails, too big to dig into a turn. So, how do we make a sup with a thin rail without losing the volume of the board? The answer is the Beveled rail. They are small flat lateral sections in V shapes, which allows us to reduce the thickness of the rail in certain sections (1). The other advantage is that they reduce the planing surface of the board (2) which therefore reduces drag. The combination of a thinner rail and slightly narrower width allows the board to get a better edge into the turns and a tighter arc.

MADEIRO PRO 7’7‘’ / 7’11‘’ / 8’3‘’ / 8’5‘’ / 8’8’’

7‘5’’

The MADEIRO PRO range benefits from a specific carbon construction. On deck, the MADEIRO PRO are built using a bamboo / carbon sandwich: the bamboo sheets are laid over a layer of carbon fiber. On the bottom, the boards are built using a high density foam / carbon sandwich: fiberglass + Hd foam + carbon fiber + fiberglass combined with a brushed finish for minimum weight.

This construction provides the MADEIRO PRO with superior strength and keeps them impressively light. The whole range therefore boasts an enviable weight to strength ratio and remains firmly within the lightest and best performing boards on the market.

The shape of the 7’5’’ and 7’7’’ sizes features a rocker which has more lift at the nose and a better volume distribution making the boards even better balanced.

The range offers a wide selection of lengths and widths, especially with the 8’3’’, 8’5’’ and 8’8’’ boards to satisfy the most demanding riders of any size and weight.

Size 7’5’’ x 26”
Dimensions 224 X 66 CM
Volume 82 L
Weight 6.3 KG*
Fin boxes layout Quattro + central FUTURES© box
Quattro set V2JC1 + QD2 400

*indicative value, subject to small variations due to the custom manufacturing process.

7‘’11’

The MADEIRO PRO range benefits from a specific carbon construction. On deck, the MADEIRO PRO are built using a bamboo/carbon sandwich where the bamboo sheets are laid over a layer of carbon fiber. On the bottom, the boards are built using a high density foam/carbon sandwich (glass fiber / foam / carbon fiber / glass fiber) combined with a brushed finish for minimum weight.

This construction provides the MADEIRO PRO with superior strength and keeps them impressively light. The whole range therefore boasts an enviable weight to strength ratio and remains firmly within the lightest and best performing boards on the market.
The shape of the 7’5’’ and 7’7’’ sizes features a rocker which has more lift at the nose and a better volume distribution making the boards even better balanced.

The range offers a wide selection of lengths and widths, especially with the 8’3’’, 8’5’’ and 8’8’’ boards to satisfy the most demanding riders of any size and weight.

Taille 7’11’’ x 28”
Dimensions 239 X 71 CM
Volume 95 L
Poids 6.8 KG*
Fin boxes layout Quattro + central FUTURES© box
Quattro set V2JC1 + QD2 400
*indicative value, subject to small variations due to the custom manufacturing process.

8"3’

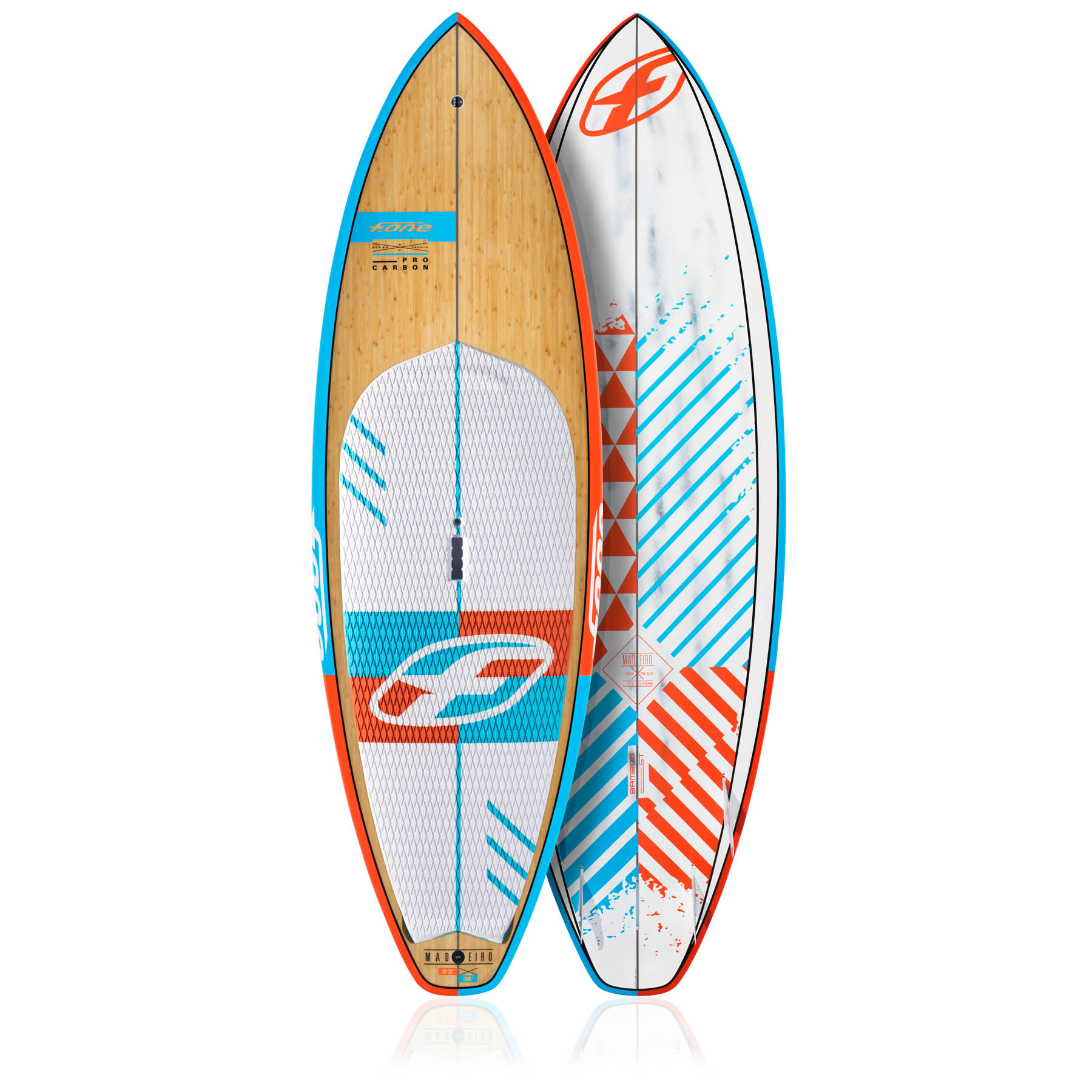

The MADEIRO PRO range benefits from a specific carbon construction. On deck, the MADEIRO PRO are built using a bamboo / carbon sandwich: the bamboo sheets are laid over a layer of carbon fiber. On the bottom, the boards are built using a high density foam / carbon sandwich: fiberglass + Hd foam + carbon fiber + fiberglass combined with a brushed finish for minimum weight.

This construction provides the MADEIRO PRO with superior strength and keeps them impressively light. The whole range therefore boasts an enviable weight to strength ratio and remains firmly within the lightest and best performing boards on the market.
The shape of the 7’5’’ and 7’7’’ sizes features a rocker which has more lift at the nose and a better volume distribution making the boards even better balanced.

The range offers a wide selection of lengths and widths, especially with the 8’3’’, 8’5’’ and 8’8’’ boards to satisfy the most demanding riders of any size and weight.

Size 8’3’’ x 30”
Dimensions 250 X 76 CM
Volume 110 L
Weight 7.3 KG*
Fin boxes layout Quattro + central FUTURES© box
Thruster set CENTRO 5’0” + SIDE FINS FUTURES© F3 425

*indicative value, subject to small variations due to the custom manufacturing process.

8’5"

The MADEIRO PRO range benefits from a specific carbon construction. On deck, the MADEIRO PRO are built using a bamboo / carbon sandwich: the bamboo sheets are laid over a layer of carbon fiber. On the bottom, the boards are built using a high density foam / carbon sandwich: fiberglass + Hd foam + carbon fiber + fiberglass combined with a brushed finish for minimum weight.

This construction provides the MADEIRO PRO with superior strength and keeps them impressively light. The whole range therefore boasts an enviable weight to strength ratio and remains firmly within the lightest and best performing boards on the market.
The shape of the 7’5’’ and 7’7’’ sizes features a rocker which has more lift at the nose and a better volume distribution making the boards even better balanced.

The range offers a wide selection of lengths and widths, especially with the 8’3’’, 8’5’’ and 8’8’’ boards to satisfy the most demanding riders of any size and weight.

Size 8’5’’ x 31.5”
Dimensions 258 X 80 CM
Volume 125 L
Weight 7.8 KG*
Fin boxes layout Quattro + central FUTURES© box
Thruster set CENTRO 5’5” + SIDE FINS FUTURES© F3 425

*indicative value, subject to small variations due to the custom manufacturing process.

8’8"

The MADEIRO PRO range benefits from a specific carbon construction. On deck, the MADEIRO PRO are built using a bamboo / carbon sandwich: the bamboo sheets are laid over a layer of carbon fiber. On the bottom, the boards are built using a high density foam / carbon sandwich: fiberglass + Hd foam + carbon fiber + fiberglass combined with a brushed finish for minimum weight.

This construction provides the MADEIRO PRO with superior strength and keeps them impressively light. The whole range therefore boasts an enviable weight to strength ratio and remains firmly within the lightest and best performing boards on the market.

The shape of the 7’5’’ and 7’7’’ sizes features a rocker which has more lift at the nose and a better volume distribution making the boards even better balanced.

The range offers a wide selection of lengths and widths, especially with the 8’3’’, 8’5’’ and 8’8’’ boards to satisfy the most demanding riders of any size and weight.

Size 8’8’’ x 33”
Dimensions 266 X 84 CM
Volume 140 L
Weight 8.4 KG*
Fin boxes layout Quattro + central FUTURES© box
Thruster set CENTRO 6’0” + SIDE FINS FUTURES© F3 425

*indicative value, subject to small variations due to the custom manufacturing process.

Construction

F_ONE_SUP_Construction_BAMBOO_CARBON_DECK_HD_FOAM_CARBON_COMPOSITE_1

Smart handle

Featured on all the 2016 SUP range:
the innovative and multifunction handle developed by F-ONE.

The SMART HANDLE includes the following features :

1  – Decompression valve
2  – Multifunction tool compartment
3  – Recessed volume
4  – Screwdriver head
5  – Allen key

F_ONE_SUP_construction_smart_handle2_585_0

More comfortable with advanced ergonomics, it is completely recessed and makes it easier to carry the SUP. The new handle helps a lot to grab the boards easily when lying flat on the ground or on the water.

F_ONE_SUP_construction_smart_handle_profil_585_0

The handle already includes the screw for the decompression valve (1).
A specific multifunction tool has been created and fits neatly into the handle (2).

F_ONE_SUP_construction_screw_585_0

The tool can be opened in two parts to reveal an Allen key which can be used to easily fit all your F-ONE SUP fins (US or FUTURES® Box) without looking everywhere to find a tool.

multifunction_tool_closed_EN__0

The top part of the tool was designed to serve as a screwdriver to open or close the decompression valve.

multifunction_tool_open_EN__0

To prevent from oversight and to make sure the decompression valve is always closed when the SUP is in the water, a reminder has been included: you cannot fit the tool back into its place nor can you carry the board if you haven’t closed the decompression valve.
Furthermore, the tool finds itself clipped on in this position. This was made to ensure the board can be transported without losing the tool. You therefore don’t have to look for the last place where you left the tool and can be sure that anyone grabbing your board will notice that the valve is not shut.

multifunction_tool_insert_1 multifunction_tool_use_1

Bamboo boost

All of our SUP benefit from our Bamboo Sandwich Technology construction. Every layer of bamboo is reinforced with two layers of fiberglass. This allows the sandwich technology to emphasize the characteristics of the bamboo.

The final result is a light structure that is super strong and extremely reliable.

HD Foam Carbon Composite

This sandwich construction (high density foam + fiberglass + carbon) provides the MADEIRO PRO with a strong resistance and lighter weight compared to the FULL BAMBOO versions.

This new construction improves the weight/resistance ratio of the MADEIRO PRO range which remain among the lightest and best performing boards of the market.

Bamboo and Carbon deck

On the deck, the board is built using a full layer of carbon fiber over which is laid the bamboo sheet.
Then a final layer of fiberglass is laminated on top, which ensures extreme durability and an amazing light weight.

Beveled rail

beveled_rail_2For all surfers one of the inconveniences of a SUP is the large size of the rails, too big to dig into a turn. So, how do we make a sup with a thin rail without losing the volume of the board? The answer is the Beveled rail. They are small flat lateral sections in V shapes, which allows us to reduce the thickness of the rail in certain sections (1). The other advantage is that they reduce the planing surface of the board (2) which therefore reduces drag. The combination of a thinner rail and slightly narrower width allows the board to get a better edge into the turns and a tighter arc.

ANAKAO 8‘2’‘ / 8’6‘’ / 8’10‘’ / 9’1‘’ / 9’5’’

8‘’2’

The ANAKAO range opens up the world of surfing on a SUP and will help you getting better at it. With a fast paddling speed, some first class grip, an intuitive carving and a perfect balance during the turns, the ANAKAO boards feel at home in any kind of waves.

Developed with the knowledge of our experienced surfer Remi QUIQUE and our Tahitian waterman Patrice CHANZY.

In terms of shape, the key ingredients that made the success of these boards are: A rounded rocker line for maneuverability with enough acceleration potential, and a thin tail outline to provide maximum grip and drive. With their moderate width towards the nose, the ANAKAO feel light in the turns and can pass the white water with ease. The whole range is equipped with beveled rails to keep them as efficient and easy as possible.

Genuine wave boards with a remarkably wide range of use, the ANAKAO are the ideal weapon to have fun in any kind of conditions and wave height. Whether your style is into radical surf or long curves, you will find an ANAKAO suited to your own size and skills.

Size 8’2’’ x 28”
Dimensions 247 X 71 cm
Volume 97 L
Weight 7.2 KG*
Fin boxes layout Thruster (central US box + FUTURES©)
Thruster set CENTRO 5’0” + Side fins FUTURES© F3 425

*indicative value, subject to small variations due to the custom manufacturing process.

8‘’6’

8"10’

The ANAKAO range opens up the world of surfing on a SUP and will help you getting better at it. With a fast paddling speed, some first class grip, an intuitive carving and a perfect balance during the turns, the ANAKAO boards feel at home in any kind of waves.

Developed with the knowledge of our experienced surfer Remi QUIQUE and our Tahitian waterman Patrice CHANZY.

In terms of shape, the key ingredients that made the success of these boards are: A rounded rocker line for maneuverability with enough acceleration potential, and a thin tail outline to provide maximum grip and drive. With their moderate width towards the nose, the ANAKAO feel light in the turns and can pass the white water with ease. The whole range is equipped with beveled rails to keep them as efficient and easy as possible.

Genuine wave boards with a remarkably wide range of use, the ANAKAO are the ideal weapon to have fun in any kind of conditions and wave height. Whether your style is into radical surf or long curves, you will find an ANAKAO suited to your own size and skills.

Size 8’10’’ x 29.5”
Dimensions 267 X 75 cm
Volume 115 L
Weight 8.2 KG*
Fin boxes layout Thruster (central US box + FUTURES©)
Thruster set CENTRO 6’0” + Side fins FUTURES© F3 425

*indicative value, subject to small variations due to the custom manufacturing process.

9’1"

The ANAKAO range opens up the world of surfing on a SUP and will help you getting better at it. With a fast paddling speed, some first class grip, an intuitive carving and a perfect balance during the turns, the ANAKAO boards feel at home in any kind of waves.

Developed with the knowledge of our experienced surfer Remi QUIQUE and our Tahitian waterman Patrice CHANZY.

In terms of shape, the key ingredients that made the success of these boards are: A rounded rocker line for maneuverability with enough acceleration potential, and a thin tail outline to provide maximum grip and drive. With their moderate width towards the nose, the ANAKAO feel light in the turns and can pass the white water with ease. The whole range is equipped with beveled rails to keep them as efficient and easy as possible.

Genuine wave boards with a remarkably wide range of use, the ANAKAO are the ideal weapon to have fun in any kind of conditions and wave height. Whether your style is into radical surf or long curves, you will find an ANAKAO suited to your own size and skills.

Size 9’1’’ x 30.5”
Dimensions 277 X 77.5 cm
Volume 135 L
Weight 8.9 KG*
Fin boxes layout Thruster (central US box + FUTURES©)
Thruster set CENTRO 7’0” + Side fins FUTURES© F3 425

*indicative value, subject to small variations due to the custom manufacturing process.

9’5"

The ANAKAO range opens up the world of surfing on a SUP and will help you getting better at it. With a fast paddling speed, some first class grip, an intuitive carving and a perfect balance during the turns, the ANAKAO boards feel at home in any kind of waves.

Developed with the knowledge of our experienced surfer Remi QUIQUE and our Tahitian waterman Patrice CHANZY.

In terms of shape, the key ingredients that made the success of these boards are: A rounded rocker line for maneuverability with enough acceleration potential, and a thin tail outline to provide maximum grip and drive. With their moderate width towards the nose, the ANAKAO feel light in the turns and can pass the white water with ease. The whole range is equipped with beveled rails to keep them as efficient and easy as possible.

Genuine wave boards with a remarkably wide range of use, the ANAKAO are the ideal weapon to have fun in any kind of conditions and wave height. Whether your style is into radical surf or long curves, you will find an ANAKAO suited to your own size and skills.

Size 9’5’’ x 31.5”
Dimensions 287 X 80 cm
Volume 150 L
Weight 9.5 KG*
Fin boxes layout Thruster (central US box + FUTURES©)
Thruster set CENTRO 7’0” + Side fins FUTURES© F3 425

*indicative value, subject to small variations due to the custom manufacturing process.

Construction

F_ONE_SUP_Construction_Full_Bamboo_double_bamboo_deck_2_0

Smart handle

Featured on all the 2016 SUP range:
the innovative and multifunction handle developed by F-ONE.

The SMART HANDLE includes the following features :

1  – Decompression valve
2  – Multifunction tool compartment
3  – Recessed volume
4  – Screwdriver head
5  – Allen key

F_ONE_SUP_construction_smart_handle2_585_0

More comfortable with advanced ergonomics, it is completely recessed and makes it easier to carry the SUP. The new handle helps a lot to grab the boards easily when lying flat on the ground or on the water.

F_ONE_SUP_construction_smart_handle_profil_585_0

The handle already includes the screw for the decompression valve (1).
A specific multifunction tool has been created and fits neatly into the handle (2).

F_ONE_SUP_construction_screw_585_0

The tool can be opened in two parts to reveal an Allen key which can be used to easily fit all your F-ONE SUP fins (US or FUTURES® Box) without looking everywhere to find a tool.

multifunction_tool_closed_EN__0

The top part of the tool was designed to serve as a screwdriver to open or close the decompression valve.

multifunction_tool_open_EN__0

To prevent from oversight and to make sure the decompression valve is always closed when the SUP is in the water, a reminder has been included: you cannot fit the tool back into its place nor can you carry the board if you haven’t closed the decompression valve.
Furthermore, the tool finds itself clipped on in this position. This was made to ensure the board can be transported without losing the tool. You therefore don’t have to look for the last place where you left the tool and can be sure that anyone grabbing your board will notice that the valve is not shut.

multifunction_tool_insert_1 multifunction_tool_use_1

Bamboo boost

All of our SUP benefit from our Bamboo Sandwich Technology construction. Every layer of bamboo is reinforced with two layers of fiberglass. This allows the sandwich technology to emphasize the characteristics of the bamboo.

The final result is a light structure that is super strong and extremely reliable.

HD Foam Carbon Composite

This sandwich construction (high density foam + fiberglass + carbon) provides the MADEIRO PRO with a strong resistance and lighter weight compared to the FULL BAMBOO versions.

This new construction improves the weight/resistance ratio of the MADEIRO PRO range which remain among the lightest and best performing boards of the market.

Bamboo and Carbon deck

On the deck, the board is built using a full layer of carbon fiber over which is laid the bamboo sheet.
Then a final layer of fiberglass is laminated on top, which ensures extreme durability and an amazing light weight.

Beveled rail

beveled_rail_2For all surfers one of the inconveniences of a SUP is the large size of the rails, too big to dig into a turn. So, how do we make a sup with a thin rail without losing the volume of the board? The answer is the Beveled rail. They are small flat lateral sections in V shapes, which allows us to reduce the thickness of the rail in certain sections (1). The other advantage is that they reduce the planing surface of the board (2) which therefore reduces drag. The combination of a thinner rail and slightly narrower width allows the board to get a better edge into the turns and a tighter arc.

MANAWA 9’0″ / 9’6‘’ / 10’0‘’ / 10’6‘’

9

The Manawa 2016 range has been designed to offer the most stable, versatile and accessible boards.

Ideal for your afternoon cruise along the beach, on a river or a lake, these boards will also let you catch and surf your first waves.

The four boards of the range enable everyone to find its own fit in terms of volume/length ratio depending on his weight and skills. Ideal for the beginners and intermediate riders, the MANAWA will follow you along your learning process. With their rounded outline and proven rocker line, they glide easily through the water and are able to surf smaller waves. Thanks to their great stability they will guide you easily during your first surfs and will forgive your mistakes. When acquiring more skills, you will still be impressed by their responsiveness.

Size 9’0’’ x 31.5”
Dimensions 274 X 80 CM
Volume 148 L
Weight 9.8 KG*

*indicative value, subject to small variations due to the custom manufacturing process.

9’6"

10’

The Manawa 2016 range has been designed to offer the most stable, versatile and accessible boards.

Ideal for your afternoon cruise along the beach, on a river or a lake, these boards will also let you catch and surf your first waves.

The four boards of the range enable everyone to find its own fit in terms of volume/length ratio depending on his weight and skills. Ideal for the beginners and intermediate riders, the MANAWA will follow you along your learning process. With their rounded outline and proven rocker line, they glide easily through the water and are able to surf smaller waves. Thanks to their great stability they will guide you easily during your first surfs and will forgive your mistakes. When acquiring more skills, you will still be impressed by their responsiveness.

Size 10’ x 33”
Dimensions 305 X 84 CM
Volume 185 L
Weight 11.6 KG*

*indicative value, subject to small variations due to the custom manufacturing process.

10’6"

The Manawa 2016 range has been designed to offer the most stable, versatile and accessible boards.

Ideal for your afternoon cruise along the beach, on a river or a lake, these boards will also let you catch and surf your first waves.

The four boards of the range enable everyone to find its own fit in terms of volume/length ratio depending on his weight and skills. Ideal for the beginners and intermediate riders, the MANAWA will follow you along your learning process. With their rounded outline and proven rocker line, they glide easily through the water and are able to surf smaller waves. Thanks to their great stability they will guide you easily during your first surfs and will forgive your mistakes. When acquiring more skills, you will still be impressed by their responsiveness.

Size 10’6” x 33”
Dimensions 320 X 84 CM
Volume 196 L
Weight 12.5 KG*

*indicative value, subject to small variations due to the custom manufacturing process.

Construction

F_ONE_SUP_Construction_Bamboo_deck_MANAWA_MADEIRO_0

Smart handle

Featured on all the 2016 SUP range:
the innovative and multifunction handle developed by F-ONE.

The SMART HANDLE includes the following features :

1  – Decompression valve
2  – Multifunction tool compartment
3  – Recessed volume
4  – Screwdriver head
5  – Allen key

F_ONE_SUP_construction_smart_handle2_585_0

More comfortable with advanced ergonomics, it is completely recessed and makes it easier to carry the SUP. The new handle helps a lot to grab the boards easily when lying flat on the ground or on the water.

F_ONE_SUP_construction_smart_handle_profil_585_0

The handle already includes the screw for the decompression valve (1).
A specific multifunction tool has been created and fits neatly into the handle (2).

F_ONE_SUP_construction_screw_585_0

The tool can be opened in two parts to reveal an Allen key which can be used to easily fit all your F-ONE SUP fins (US or FUTURES® Box) without looking everywhere to find a tool.

multifunction_tool_closed_EN__0

The top part of the tool was designed to serve as a screwdriver to open or close the decompression valve.

multifunction_tool_open_EN__0

To prevent from oversight and to make sure the decompression valve is always closed when the SUP is in the water, a reminder has been included: you cannot fit the tool back into its place nor can you carry the board if you haven’t closed the decompression valve.
Furthermore, the tool finds itself clipped on in this position. This was made to ensure the board can be transported without losing the tool. You therefore don’t have to look for the last place where you left the tool and can be sure that anyone grabbing your board will notice that the valve is not shut.

multifunction_tool_insert_1 multifunction_tool_use_1

Bamboo boost

All of our SUP benefit from our Bamboo Sandwich Technology construction. Every layer of bamboo is reinforced with two layers of fiberglass. This allows the sandwich technology to emphasize the characteristics of the bamboo.

The final result is a light structure that is super strong and extremely reliable.

Bamboo deck

The top deck of the board is lined with a layer of bamboo..

Beveled rail

beveled_rail_2For all surfers one of the inconveniences of a SUP is the large size of the rails, too big to dig into a turn. So, how do we make a sup with a thin rail without losing the volume of the board? The answer is the Beveled rail. They are small flat lateral sections in V shapes, which allows us to reduce the thickness of the rail in certain sections (1). The other advantage is that they reduce the planing surface of the board (2) which therefore reduces drag. The combination of a thinner rail and slightly narrower width allows the board to get a better edge into the turns and a tighter arc.
